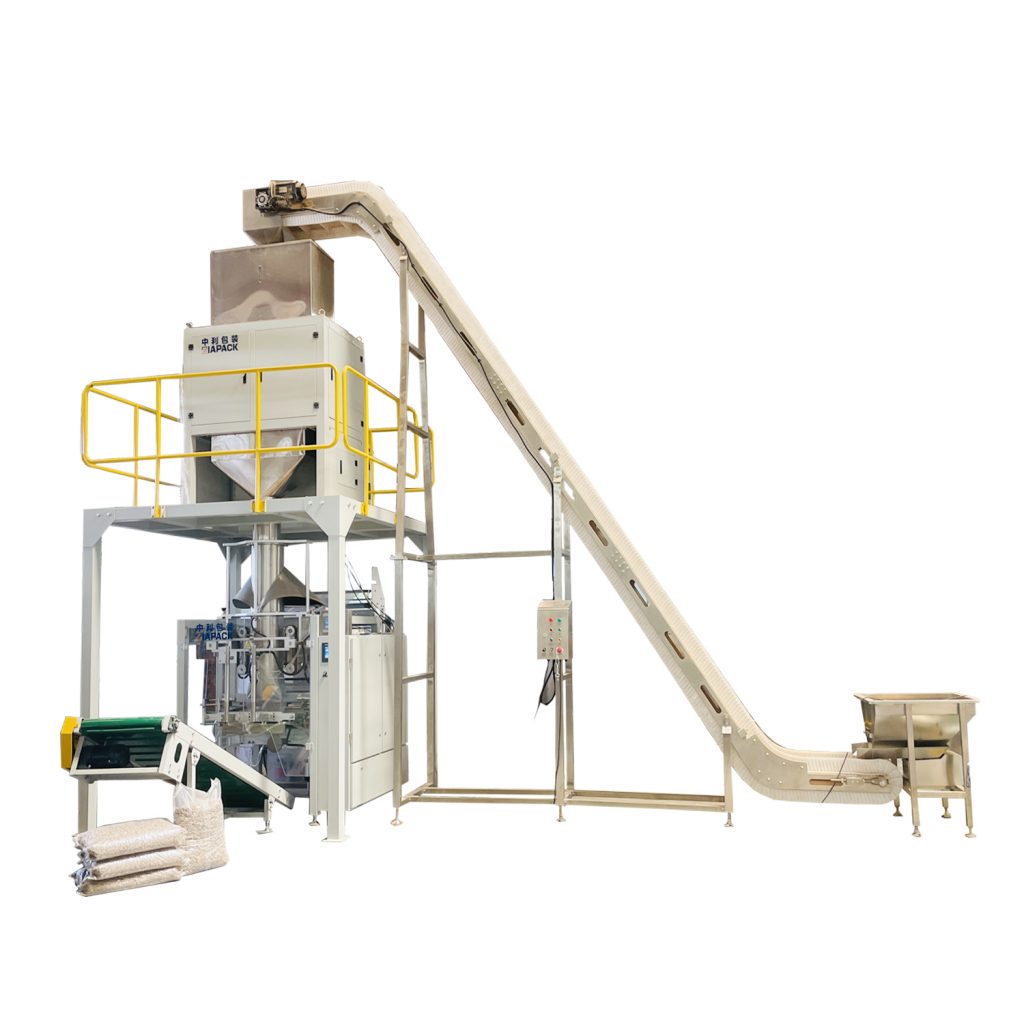

Automatic15-20 kg wooden pellets bag forming filling packaging machine
Sarrera:
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
Parametro teknikoak:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
Aire konprimituaren eskakizuna: 0.6Mpa 0.65m³/min
Reel outer diameter: 450mm
Nukleoaren barruko diametroa: 75 mm
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
Ezaugarri eta Ezaugarri nagusiak:
- Poltsa sorta zabala: Pillow eta Gusset poltsak.
- Abiadura handia: 20-50 poltsa/min
- Erabiltzeko erraza: PLC kontrolatzailea eta koloretako ukipen-pantaila, akatsen adierazlea ukipen-pantailan.
- Egokitzeko erraza: 10 minutu baino gutxiago desberdineko poltsak aldatzeko.
- Maiztasun kontrola: maiztasuneko bihurketa maiztasunaren arabera doitu daiteke abiadura.
- Automatizazio handia: pisua eta paketatze-prozesua, makina-alarma automatikoki egitean hutsegitea denean.
- Segurtasuna eta higienea:
- Filmik ez, makinak alarma emango du.
- Alarma makina eta gelditu airearen presio egokian.
- Segurtasun-aldaketako segurtasun zaindariak, alarma-makina eta segurtasun zaindariak irekita gelditzen direnean.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

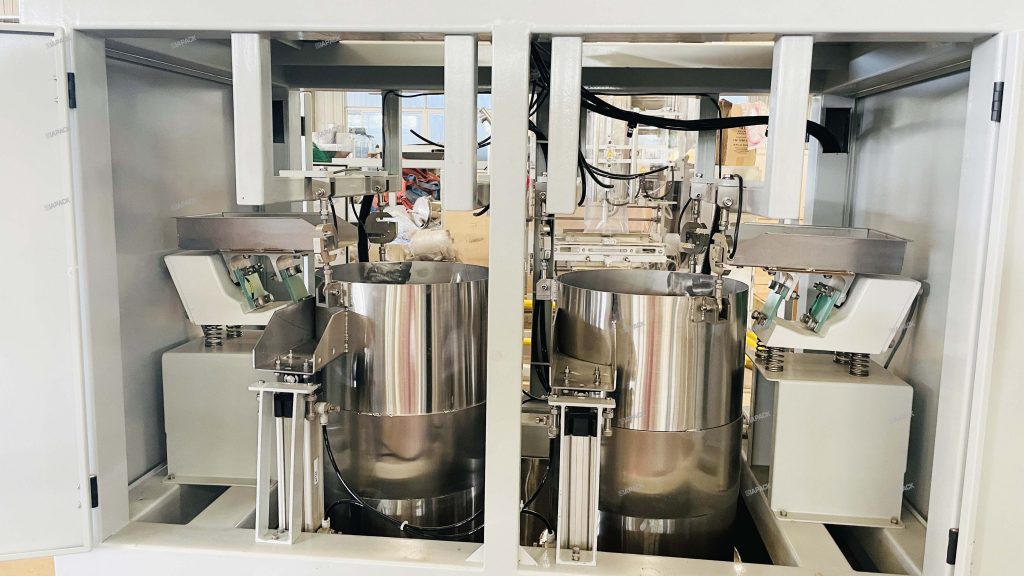

- ZLC2-15k double bucket weighing machine
Sarrera:
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
Ezaugarriak:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
